Product Description
Applications:
  • Roofing felt
  • Foam and fiberboard sheathing
  • Insulation house wrap carboard or carton to pallet
Feature:

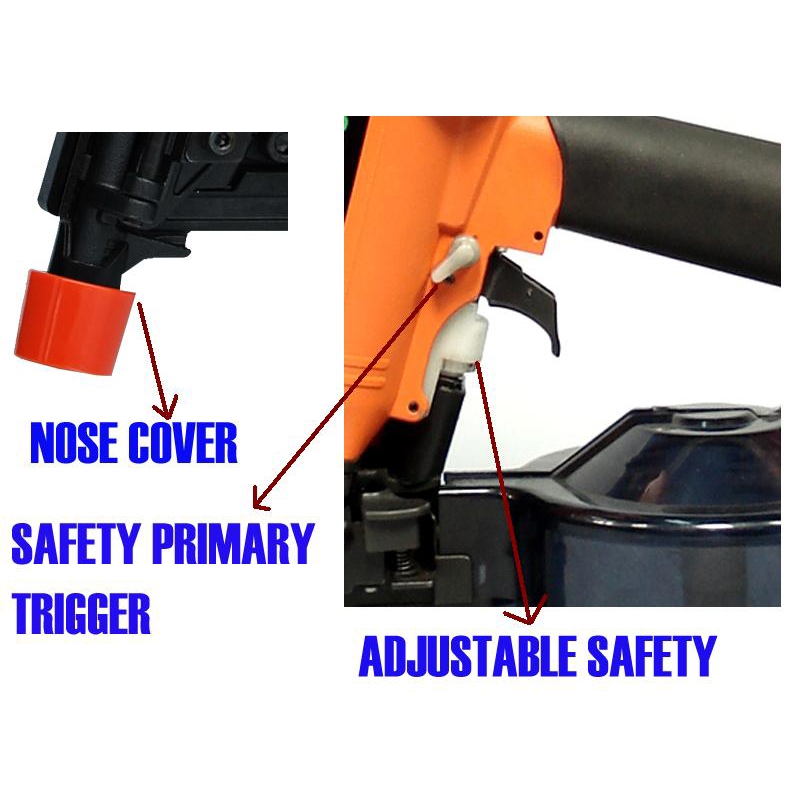

  • Adjustable exhaust cover
  • Depth of adjustment to countersink of flush drive nails
  • Lightweight design prevents arm fatigue for user
  • Drives wire and plastic sheet collated nails
  • The CN75WP is engineered to accept both wire collated 2.3mm~2.9mm
  • and plastic sheet collated 2.3mm~2.5mm nails
  • These nails are generally available in 38mm~75mm lengths
  • The CN75WPC can use plastic cap, metal cap, stainless cap, and waterproof stainless cap
Inquiry
Product Introduction
Specification:
Length 300 mm
Height 318 mm
Wide 130 mm
Weight 3.3 kgs
Load Capacity of Wire Collation 400 nails
Load Capacity of Sheet Collation 200 nails
Operating Pressure 100-120 psi
Magazine Type Convex type
Housing Material Aluminum Alloy
Magazine Loaded Side loading magazine
Trigger Type Consecutive driving of nails
Fastener:
Shank of Wire Collation 2.3mm ~2.9mm(0.09"~0.114")
Shank of Sheet Collation 2.3mm~2.5mm(0.09"~0.098")
Sheet Collation Length(inch) 45mm~57mm(1-3/4"~2-1/4")
Wire Collation Length(inch) 38mm~75mm(1-1/2"~2-3/4")
