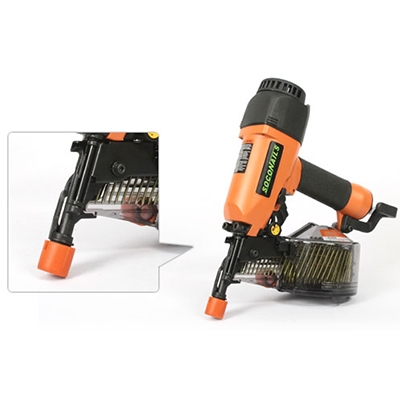

CN50WP

CN50WP
CN50WP
CN50WP
CN50WP
Product Description
Applications:
  • Construction work (ex: siding, roofing and sheathing)
  • Use for wooden cases, light pallets, wooden furniture, wooden sashes and other wood products
Feature:
  • 360° exhaust deflector allows exhaust of air in any direction
  • Depth of drive adjustment to countersink of flush drive nails
  • Lightweight design prevents arm fatigue for user
  • Drives wire and plastic sheet collated nails
  • The CN50WP is engineered to accept both wire collated 2.1mm~2.3mm
  • and plastic sheet collated 1.4mm~1.8mm nails
  • These nails are generally available in 25mm~50mm lengths
Inquiry
Product Introduction
Specification:
Length 220 mm
Height 280 mm
Wide 110 mm
Weight 1.45 kgs/3.2 lbs
Load Capacity of Wire Collation 400 nails
Load Capacity of Sheet Collation 200 nails
Operating Pressure 90-110 psi
Magazine Type Convex type
Housing Material Aluminum Alloy
Magazine Loading Side loading magazine
Trigger Type Single contact and consecutive driving of nails
Fastener:
Nail Shank of wire Collation 2.1mm~2.3mm(0.082"~0.09")
Nail Shank of Sheet Collation 1.4mm~ 1.8mm(0.055"~0.071")
Sheet Collation Length(Inch) 22mm~ 38mm(1-1/8"~1-1/2")
Wire Collation Length (Inch) 27mm ~ 50mm(1-1/10"~ 2")
