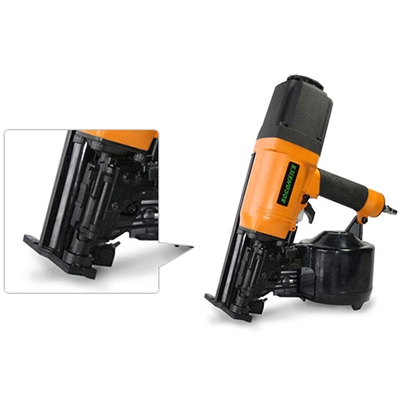

CN90WPC

CN90WPC
CN90WPC
CN90WPC
Product Description
Applications:
  • Roofing felt
  • Foam and fiberboard sheathing
  • Insulation house wrap carboard or carton to pallet
Feature:

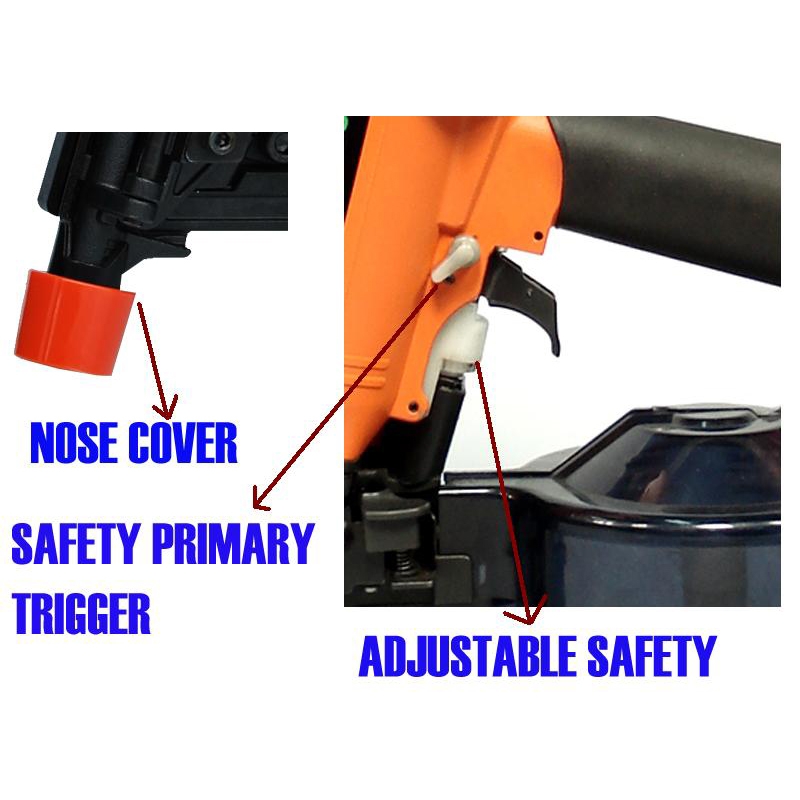

  • 360° exhaust deflector allows exhaust of air in any direction
  • Depth of adjustment to countersink of flush drive nails
  • Lightweight design prevents arm fatigue for user
  • Drives wire and plastic sheet collated nails
  • The CN90WP is engineered to accept both wire collated 2.5mm~3.3mm
  • and plastic sheet collated 2.5mm~2.9mm nails
  • These nails are generally available in 50mm~90mm lengths
  • The CN90WPC can use plastic cap,  metal cap, stainless cap, and waterproof stainless cap
Inquiry
Product Introduction
Specification:
Length 300 mm
Height 330 mm
Wide 130 mm
Weight 3.6kgs
Load Capacity of Wire Collation 400 nails
Load Capacity of Sheet Collation 200 nails
Operating Pressure 100-120 psi
Magazine Type Convex type
Housing Material Aluminum Alloy
Magazine Loaded Side loading magazine
Trigger Type Consecutive driving of nails
Fastener:
Shank of Wire Collation 2.5mm~3.3mm(0.098"~0.13
Shank of Sheet Collation 02.5mm~2.9mm(0.098"~0.114")
Collation Length (inch) 50mm~90mm(2"~3-1/2")
